Hourmeter
- 6-digit digital LCD hourmeter

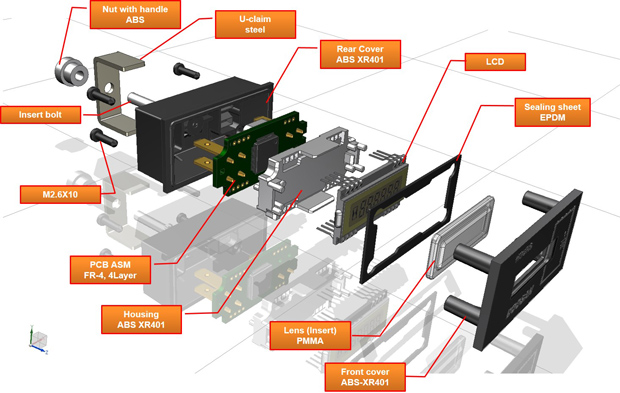

Characteristics :
- ① Bezel Shape : Rectangular
- ② Lens material :Acrylic
- ③ Case material: ABS
- ④ IP Rating : 65/50 (Front/Rear)
- ⑤ Termination : 3/16” Spade
- ⑥ Suggested Panel Cutout : 45.0 mm x 22.2 mm
| Display | 6-digit LCD, Height 7 mm |
|---|---|
| Range & Resolution | 99,999.9 hours |
| Operating Voltage at Power Terminal |
Nominal : 8~32V, Maximum : 6~40V |
| Current Consumption | 0.6mA max @12VDC |
| Accuracy | ± 0.1% |
| Operating Temperature | -40°C to + 85°C |
| Storage Temperature | -55°C to + 105°C |
| Memory | Main power must be applied for 1 sec to activate memory (with no loss of time/counts). EEPROM-Data retention 20+ years without power present. |
| Input Signal (DC) | Enable power must be applied for 0.1 sec, min, to accumulate time. |
