Standard Product

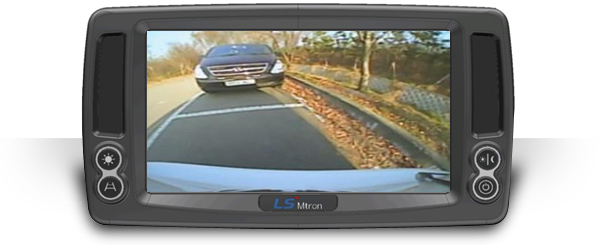

Rear Monitor
Monitor Characteristics :
- ① 7” TFT LCD
- ② 4 control button ? On/off, brightness control, rear-view distance, Day-night mode
- ③ 8 LED lamp telltale (4L + 4R)
- ④ Customer logo applied
- ⑤ Customizable starting display (when key-on)
- ⑥ Display rear-view distance by color
- ⑦ Optional CAN interface information display (Vehicle information)
- ⑧ Optional DMB (Digital Multimedia Broadcasting)
- ⑨ Day / Night screen mode
Camera specification :
- ① Dimension : W25 x H25 x D32 (20cc)
- ② Good low light performance (low noise)
- ③ 0.5 Lux (CEA-639)
- ④ Waterproof : IP6K7
- ⑤ Sensor : 1/3” VGA CMOS
- ⑥ Effective pixel : 300,000
- ⑦ Lens composition : 2P3G
- ⑧ Focus range : 40CM ~ ∞
